eme 6600 Gantry Crane Series
The eme 6600 series, a 3 tonne aluminum Gantry Crane with a maximum lift capacity of 6,600 lbs, comes in a wide range of beam lengths and heights. All eme aluminum Gantry Cranes are adjustable for both beam height and clear span. We’ve developed an extensive portfolio of aluminum Gantry Crane designs and can customize our eme 6600 for your specific requirements.
Gantry Crane Series Menu
eme 6600 Gantry Crane Models
Operator Safety
All products are designed and tested to meet or exceed regulatory requirements and to focus on operator safety
Simplicity
Our products are designed to be intuitive, easy to use and operate without the need for complex rigging equipment or machinery
Mobility & Portability
Our innovative designs can easily be moved under load or transported to off-site locations, minimizing the need for redundant equipment that can consume limited floor space

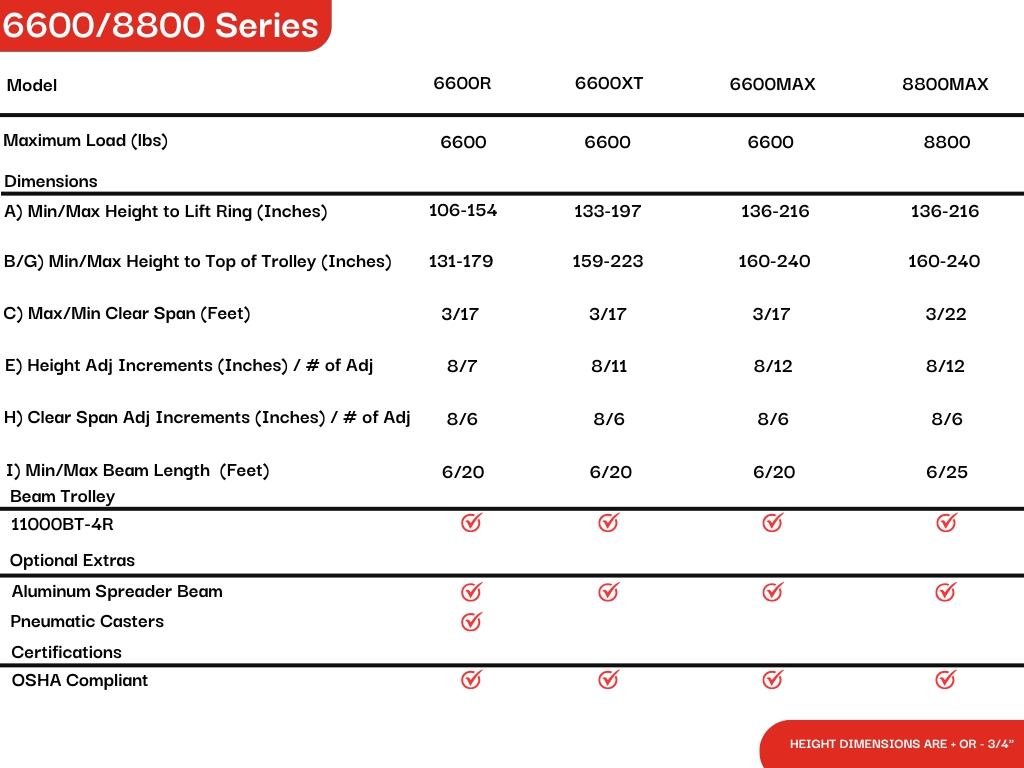

6600R
Standard DImensions- Maximum Lift capacity of 6,600 lbs
- Lift Range of 106-154 inches
- Standard Beam length of 15 feet
- Maximum Beam Length of 16.5 feet
- Locking ‘surround-beam’ trolley
- Assembled weight of 585 lbs
- Load tested to 125% prior to shipment (OSHA standard)
- 4 position locking casters
- Beam height & clear span adjustments
- Grade L9 plated fasteners
- Easy grip handles for height adjustment
- Carrying handles on beam
- CSA 47.2 welding
6600 Custom
Contact Us to Customize- Maximum Lift capacity of 6,600 lbs
- We can customize minimum and maximum lift height, beam length, clear span, caster width, along with a number of other features
- We’ve optimized our designs to be easily customized, fitting our exact customer needs in an expedited manner. So don’t worry, custom doesn’t mean radically different pricing vs our standard models or lengthy delivery times.
eme 6600 – 3 Tonne Aluminum Gantry Crane Use Cases
Operators use the eme 6600 in a wide variety of settings, solving a broad range of lifting problems in the 6,600 lbs class. Operators have leveraged our lightweight 3 ton aluminum Gantry Crane to navigate maintain and repair other equipment, perform helicopter maintenance, traverse the winter tundra, or take to an off-site location. The eme 6600 is an indispensable tool for moving 6,600 lbs loads.

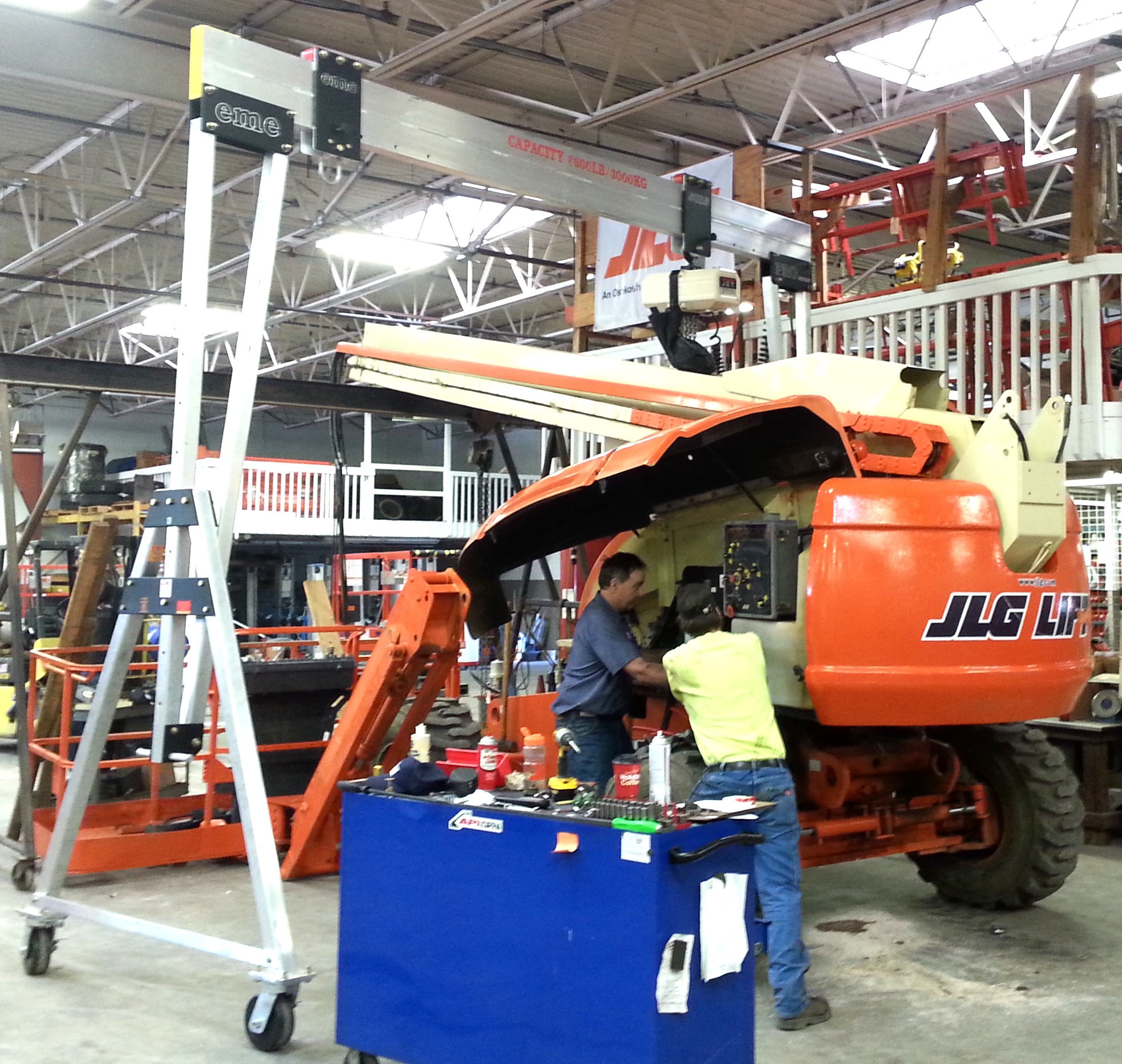

6600R eme aluminum Gantry Crane used in shop to repair and maintain other equipment
6600R eme aluminum Gantry Crane used in shop to repair and maintain other equipment
6600 Custom tall eme aluminum Gantry Crane for helicopter repair
6600 Custom tall eme aluminum Gantry Crane for helicopter repair
6600R eme aluminum Gantry Crane on the frozen tundra building a CAT
6600R eme aluminum Gantry Crane on the frozen tundra building a CAT

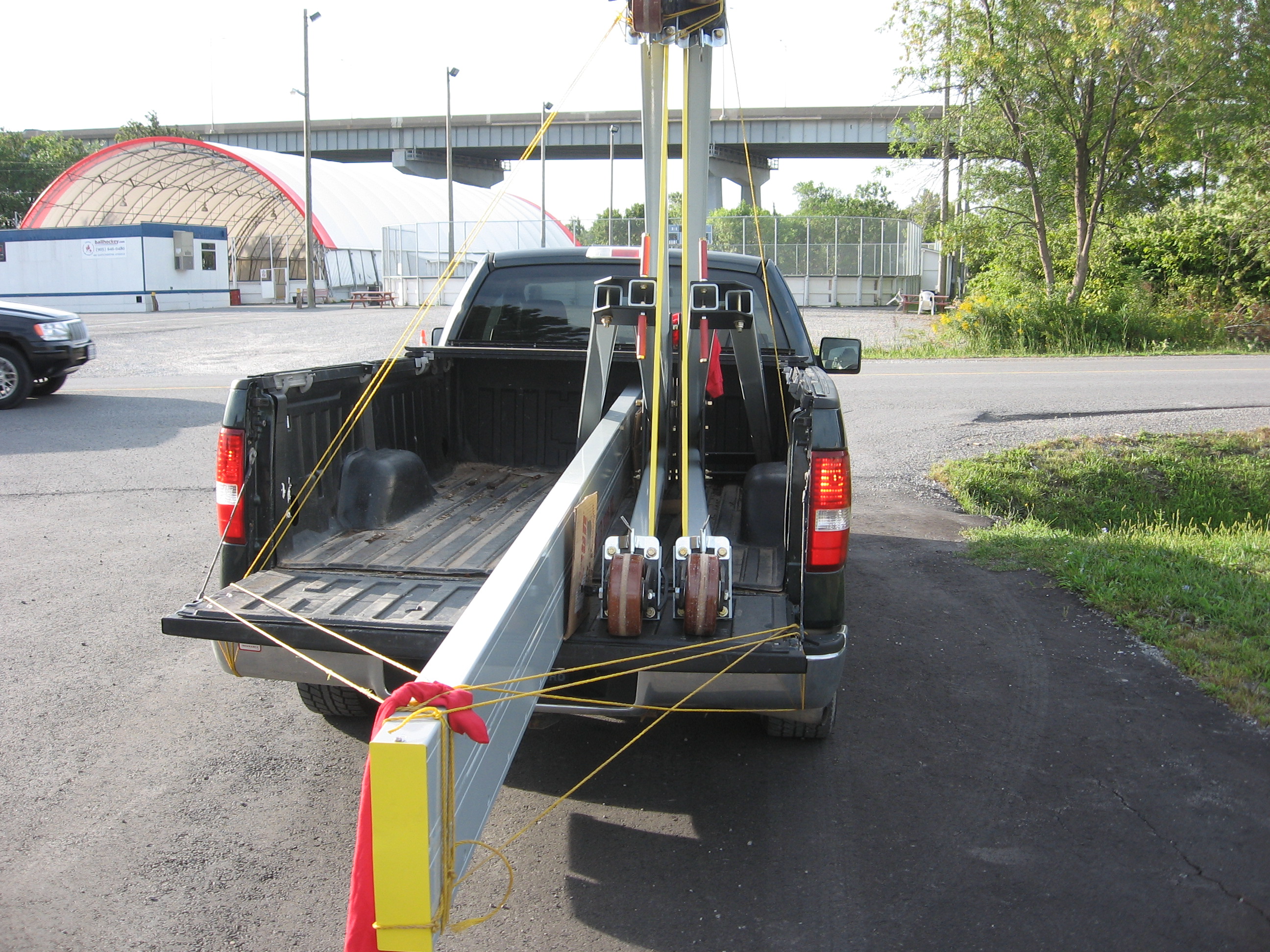

6600R eme aluminum Gantry Crane compact enough to transport in the back of an average pickup truck
6600R eme aluminum Gantry Crane compact enough to transport in the back of an average pickup truck
6600R eme aluminum Gantry Crane at a utility
6600R eme aluminum Gantry Crane at a utility
6600R eme aluminum Gantry Crane sleek design makes it simple for 2 people to assemble
6600R eme aluminum Gantry Crane sleek design makes it simple for 2 people to assemble
eme 6600 – 3 Tonne Aluminum Gantry Crane Unique Features
The lightweight and portable eme 6600’s extensive feature set makes it the ultimate piece of lifting equipment to have available for an operations professional. With a lifting capacity of 6,600 lbs, it’s perfect for “tweener” lifts, that don’t justify a full 11,000 lbs (5T) Gantry Crane, but are too large for a 4,400 lbs (2T) capacity.
Beam Height & Clear Span Adjustments
Additional Beam Trolleys
Adding additional beam trolleys to the eme 6600 is as simple as sliding it onto the beam. Loads can benefit from multiple pick-points to create greater stability. With our integrated solution we can simply provide you with an extra beam trolley for your eme 6600, taking the guess work out of matching beam trolleys with beams.
The eme Split-Beam
Cantilever Option
The cantilever option completely transforms the eme Gantry Crane. By simply adding the cantilever and counterweights, the eme Gantry Crane can now “fish” over obstructions or barriers. We’ve divided the counterbalance weights into ten 26-pound plates for simple transport.
Documentation
All eme 6600 aluminum Gantry Cranes come with:
- Certificate of Test at 125% of Rated Capacity
- Engineers Stamped Drawing covering the eme 6600 design
- Owners Manual
