eme 2200 Gantry Crane Series

The eme 2200 series, a 1 tonne aluminum Gantry Crane with a maximum lift capacity of 2,200 lbs comes in a wide range of beam lengths and heights. All eme Gantry Cranes are adjustable for both beam height and clear span. We’ve developed an extensive portfolio of aluminum Gantry Crane designs and can customize our eme 2200 for your specific requirements.

Operator Safety

All products are designed and tested to meet or exceed regulatory requirements and to focus on operator safety

Simplicity

Our products are designed to be intuitive, easy to use and operate without the need for complex rigging equipment or machinery

Mobility & Portability

Our innovative designs can easily be moved under load or transported to off-site locations, minimizing the need for redundant equipment that can consume limited floor space

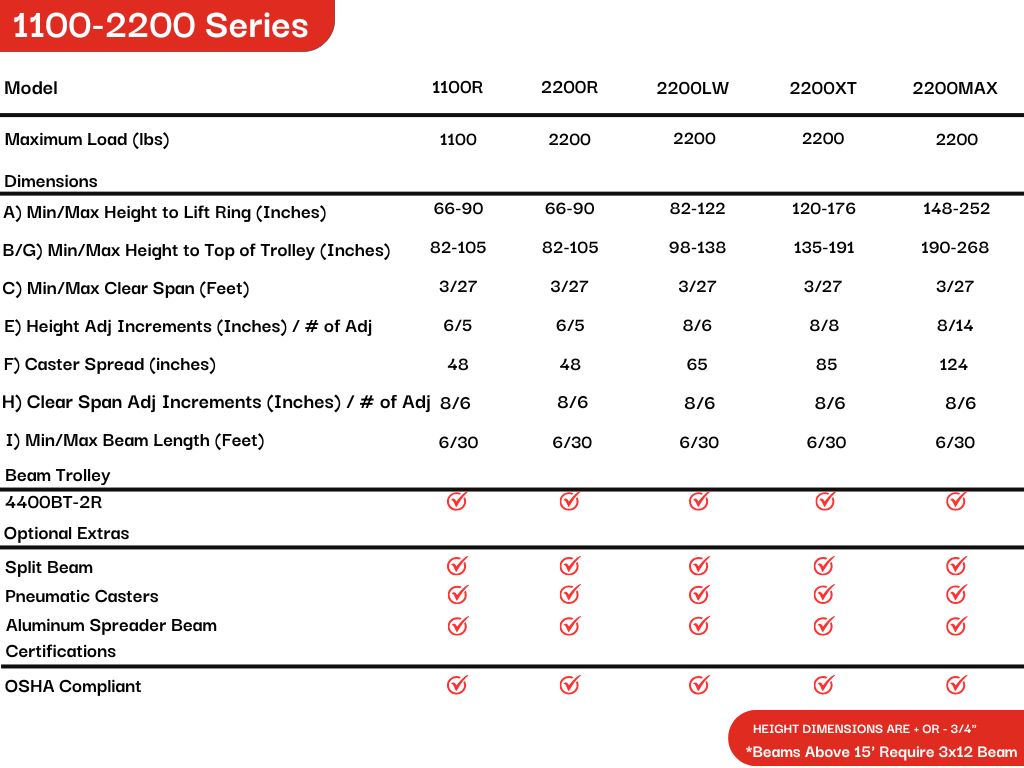

View Full Spec Sheet

2200R

Standard Dimensions

Moveable Under Load

Maximum Lift capacity of 2,200 lbs
Lift Range of 66-90 inches
Standard Beam length of 8 feet
Maximum Beam Length of 23 feet
Locking ‘surround-beam’ trolley
Assembled weight of 270 lbs
Load tested to 150% prior to shipment, exceeding OSHA standard
4 Position Locking Casters
Beam height & clear span adjustments
Grade L9 plated fasteners
Easy grip handles for height adjustment
Carrying Handles on Beam
CSA 47.2 welding

2200LW

Higher Minimum & Maximum Heights

Moveable Under Load

Maximum Lift capacity of 2,200 lbs
Lift Range of 82-122 inches
Standard Beam length of 10 feet
Maximum Beam Length of 23 feet
Locking ‘surround-beam’ trolley
Assembled weight of 300 lbs
Load tested to 150% prior to shipment, exceeding OSHA standard
4 Position Locking Casters
Beam height & clear span adjustments
Grade L9 plated fasteners
Easy grip handles for height adjustment
Carrying handles of beam
CSA 47.2 welding

2200 Custom

Contact Us to Customize

Custom

Maximum Lift capacity of 2,200 lbs
We can customize minimum and maximum lift height, beam length, clear span, caster width, along with a number of other features
We’ve optimized our designs to be easily customized, fitting our exact customer needs in an expedited manner. So don’t worry, custom doesn’t mean radically different pricing vs our standard models or lengthy delivery times.

Click Here to Request a Quote or Click the Chat Now Button

eme 2200 – 1 Tonne Aluminum Gantry Crane Use Cases

Operators use the eme 2200 in a wide variety of settings, solving a broad range of lifting problems in the 2,200 lbs class. Operators have leveraged our lightweight aluminum Gantry Crane to navigate low overhead environments, lift tall loads, maintain infrastructure, navigate tight entry ways using the eme Split-Beam, and lifting Helicopter transmissions. The eme 2200 is an indispensable tool for moving 2,200 lbs (1T) loads.

2200R eme aluminum Gantry Crane in low overhead environment

2200LW eme aluminum Gantry Crane moving warehouse materials

2200R eme aluminum Gantry Crane using the eme Split Beam

2200XT Custom eme aluminum Gantry Crane at a helicopter facility

2200XT Custom aluminum Gantry Crane at a helicopter facility

eme 2200 – 1 Tonne Aluminum Gantry Crane Unique Features

The lightweight and portable eme 2200’s extensive feature set makes it the ultimate piece of lifting equipment to have available for an operations professional.

Beam Height & Clear Span Adjustments

All eme Gantry Cranes come with standard 4, 8 inch beam adjustments on both legs, allowing the operator to narrow the clear span in space-constrained environments. The beam height can easily be raised or lowered to accommodate height restrictions. The legs can even be placed at different heights to accommodate different floor levels.

Additional Beam Trolleys

Adding additional beam trolleys to the eme 2200 is as simple as sliding it onto the beam. Loads can benefit from multiple pick-points to create greater stability. With our integrated solution we can simply provide you with an extra beam trolley for your eme 2200, taking the guess work out of matching beam trolleys with beams.

The eme Split-Beam

Our highly innovative eme Split-Beam gives the operator 3 beams in 1. A 20-foot beam can be broken into a 12-foot and 8-foot beam, all with 1T lifting capacity. All three beams have the exact same adjustment characteristics of a typical eme beam.

Cantilever Option

The cantilever option completely transforms the eme Gantry Crane. By simply adding the cantilever and counterweights, the eme Gantry Crane can now “fish” over obstructions or barriers. We’ve divided the counterbalance weights into ten 26-pound plates for simple transport.

Pneumatic Casters

Pneumatic Casters is a great solution for pressure sensitive surfaces. Our pneumatic casters solution has a capacity up to 4,400 lbs.

Documentation

All eme 2200 aluminum Gantry Cranes come with:

Certificate of Test at 150% of Rated Capacity
Engineers Stamped Drawing covering the eme 2200 design
Owners Manual
