Aluminum Gantry Crane · 22000 Series · 22,000 lb / 10 Tonne
10-Tonne Lift.
Top of the Line.
Capacity
22,000 lb
Family
Flagship
Setup
Standard forklift
Tested
125% load test
The 22000 Series is the flagship of the eme line — 22,000 lb / 10-tonne portable aluminum lifting capacity with a dedicated beam and trolley family engineered for the heaviest portable industrial lifts. Forklift-assisted setup can reduce or eliminate crane-truck mobilization for many jobsites, while loaded mobility on level prepared surfaces helps crews position serious capacity where the work is.
eme 22000
Engineered, Welded, and Tested for North American Jobsites
Engineered to
- ASME B30.17 Cranes and Monorails
- CSA B167 Overhead Travelling Cranes
- Aluminum Design Manual (ADM) US aluminum structural design
- CSA S157 Strength Design in Aluminum
Welded under
CSA W47.2
Canadian Welding Bureau aluminum welding certification
Workplace compliance
OSHA 1910.179
Supports employer compliance with applicable OSHA 1910.179 workplace requirements when installed, inspected, and used according to the operating manual.
Specifications & 3D Build
The 22000 Series Standard Model
The 22000 Series starts with one standard model: the 22000R-15. 22,000 lb rated capacity on a 15 ft standard beam, engineered with a dedicated trolley family sized for flagship loads. Spin the model on the right while you read.

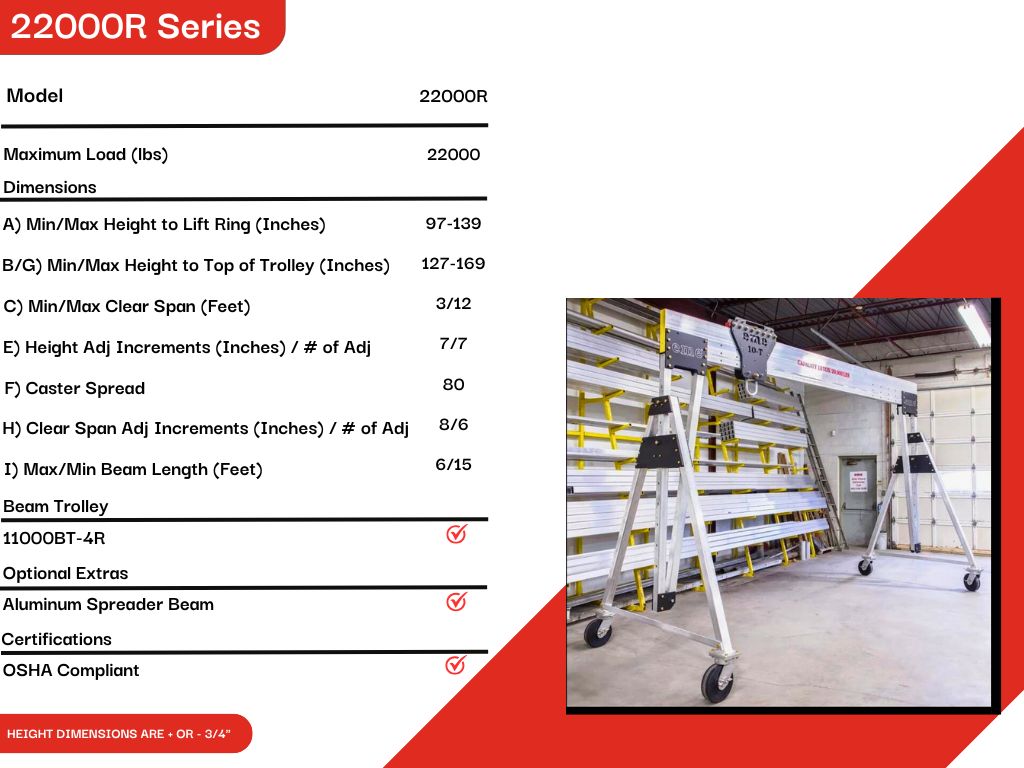

Weights, lift ranges, and dimensions verified against the current eme Aluminum Gantry Crane Spec Summary. Lift range = min/max height to lifting eye. Max height = max top-of-trolley height. Assembled weight excludes the beam trolley. Main beam: a custom-designed proprietary 6061-T6 aluminum box extrusion engineered for flagship lifting service. Every unit is proof-load tested to 125% of rated capacity prior to shipment.

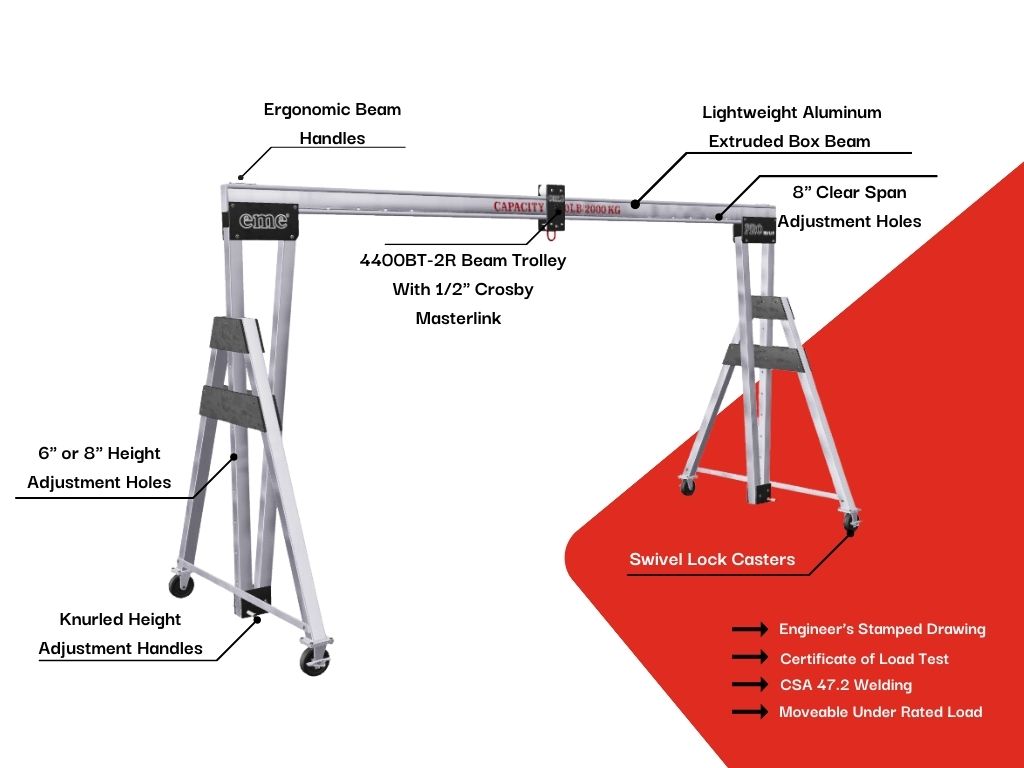

3D Model Shown is a 22000 Series. Toggle between raised and lowered positions, view the anatomy diagram, or play the video to watch the height-adjustment cycle.
In Use
Where the 22000 earns its keep.
The 22000 Series handles the loads that smaller portable gantries can't reach — top-tier portable aluminum capacity for the most demanding industrial work. Click any photo to enlarge.
Common applications
Heavy Industrial Maintenance
Large motors, pumps, housings, and equipment modules.
Transformer & Switchgear Placement
Controlled lifts for electrical infrastructure and heavy components.
Machinery Moves
Portable 10-tonne lifting capacity for equipment positioning and plant moves.
Fleet & Rental Operations
High-capacity portable gantry coverage for rental fleets and industrial service teams.
Setup
10-Tonne Capacity Without Crane-Truck Mobilization
The 22000 Series is designed for forklift-assisted ground-up assembly, giving crews a practical way to deploy 10-tonne lifting capacity without bringing in a crane truck for many applications. A forklift or comparable facility equipment speeds setup, reduces handling effort, and keeps the system practical for industrial jobsites with level prepared surfaces.
Standard Forklift Setup
The 22000R sets up with a forklift or comparable facility equipment, helping crews reduce or eliminate crane-truck mobilization for many jobsites.
Configurable Beam Lengths
Beam length is specified to the jobsite span, with each beam rated for the 22000 Series capacity and configuration.
Rolls While Fully Loaded
Reposition the 22000R with the load on, on suitable level surfaces and in accordance with the operating manual — no need to unload, re-rig, and re-lift between positions.
Dedicated 10-Tonne Family
The 22000 Series uses a dedicated beam and trolley family engineered specifically for 10-tonne portable lifting — top of the eme line.
Standards, Welding Certification & Testing
Engineered, Welded, and Load-Tested for North America
Every eme 22000 Series gantry is engineered to ASME B30.17 (cranes and monorails), CSA B167 (overhead travelling cranes), the Aluminum Design Manual (ADM), and CSA S157 (Canadian aluminum structural design). All welded aluminum structure is produced under CSA W47.2 certification — the Canadian Welding Bureau's third-party credential for fusion welding of aluminum. Each 22000 Series production unit is load-tested to 125% of rated capacity before shipment and supplied with a Certificate of Test.
Compare
Need less capacity?
If your lift is below the 10-tonne range, compare the smaller-capacity gantry series in the eme line. Each has its own setup pattern and shared-component story.
Configure Your 22000 Series Gantry
Tell us your load, lift height, beam span, and jobsite. We’ll match you to the right 22000 Series configuration and respond within one business day with pricing and availability.
